Technical Specifications:
? LCD Type: TN, HTN, STN, FSTN, positive mode
? Background Color: blue, yellow/green, grey
? Display Mode: Transmissive, reflective, transflective
? Viewing Direction: 6 o'clock or 12 o'clock
? Polarizer Type: general durability, medium durability, high durability
? Typical Thickness: 1.1mm
? Driver Method: 1/4 duty, 1/3 bias or on request
? Operating Voltage: 2.7V~5.0V 64Hz
? Operating Temperature: -20℃~+70℃; -30℃~+80℃; -40℃~+85℃
? Connector: Pin, any length is available

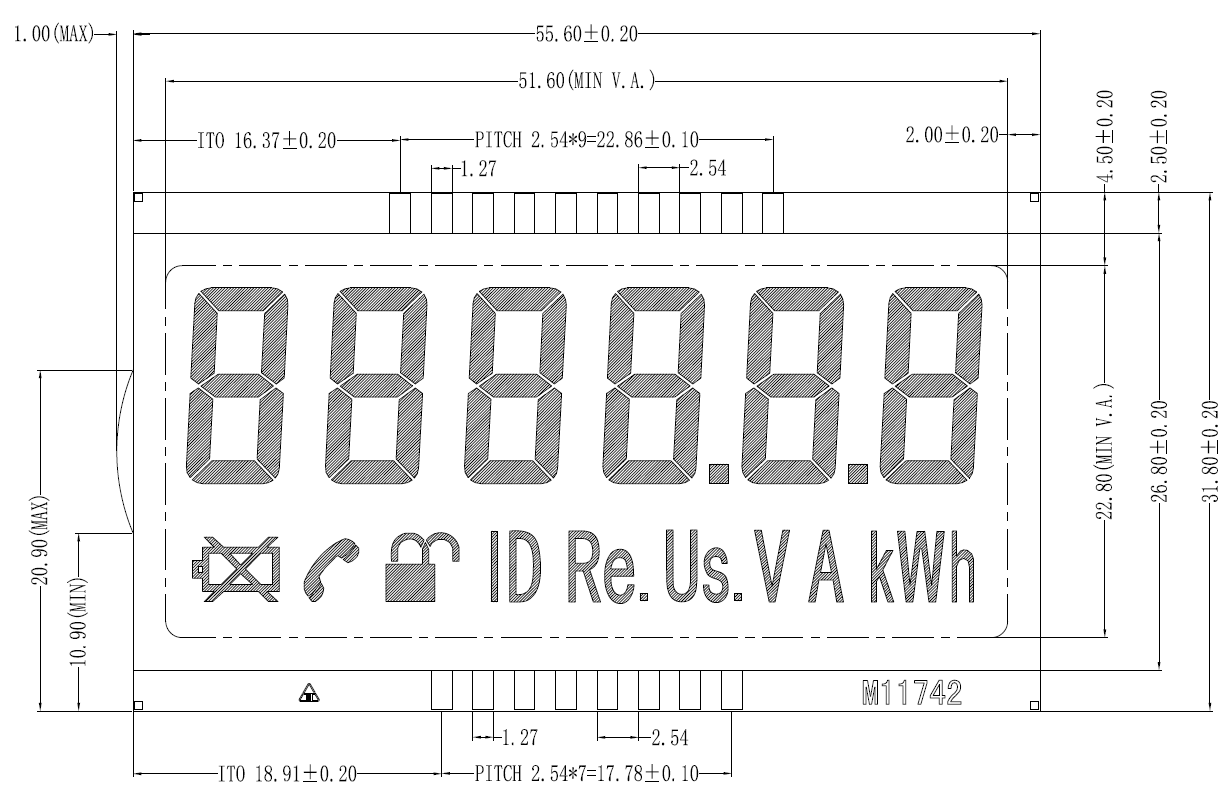

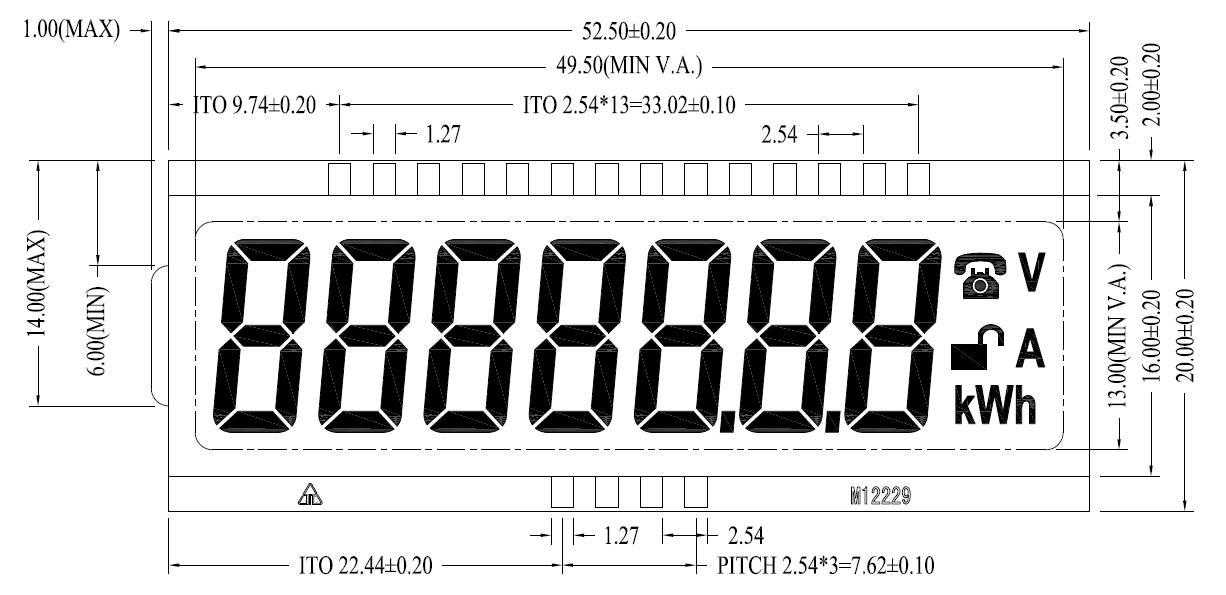

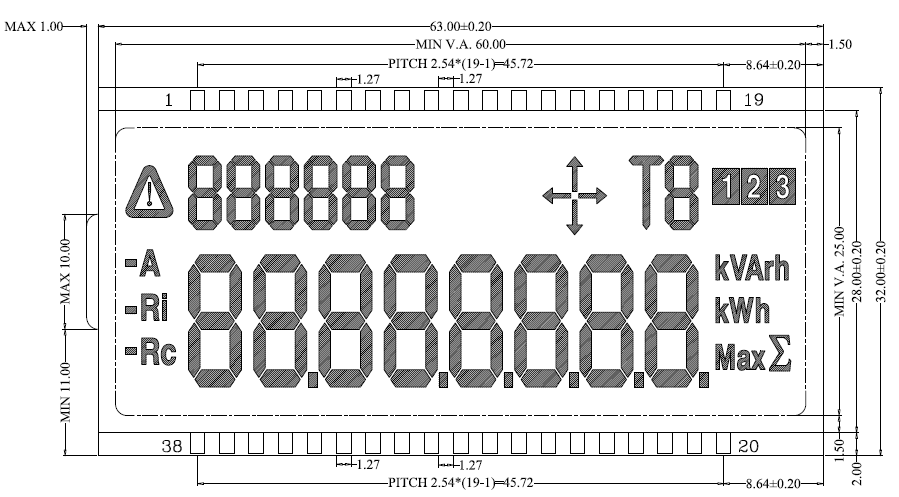

Model Type:
